Halo

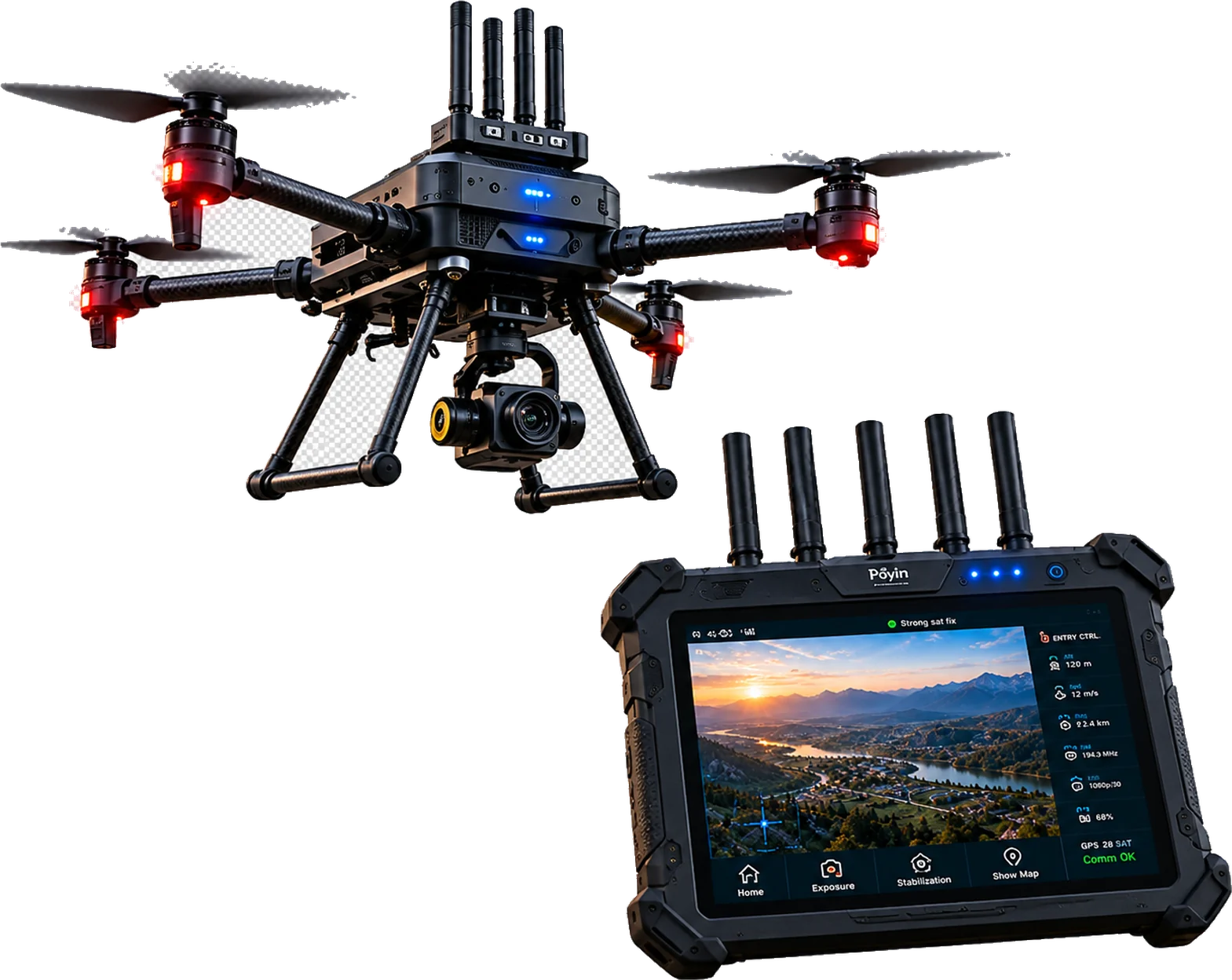

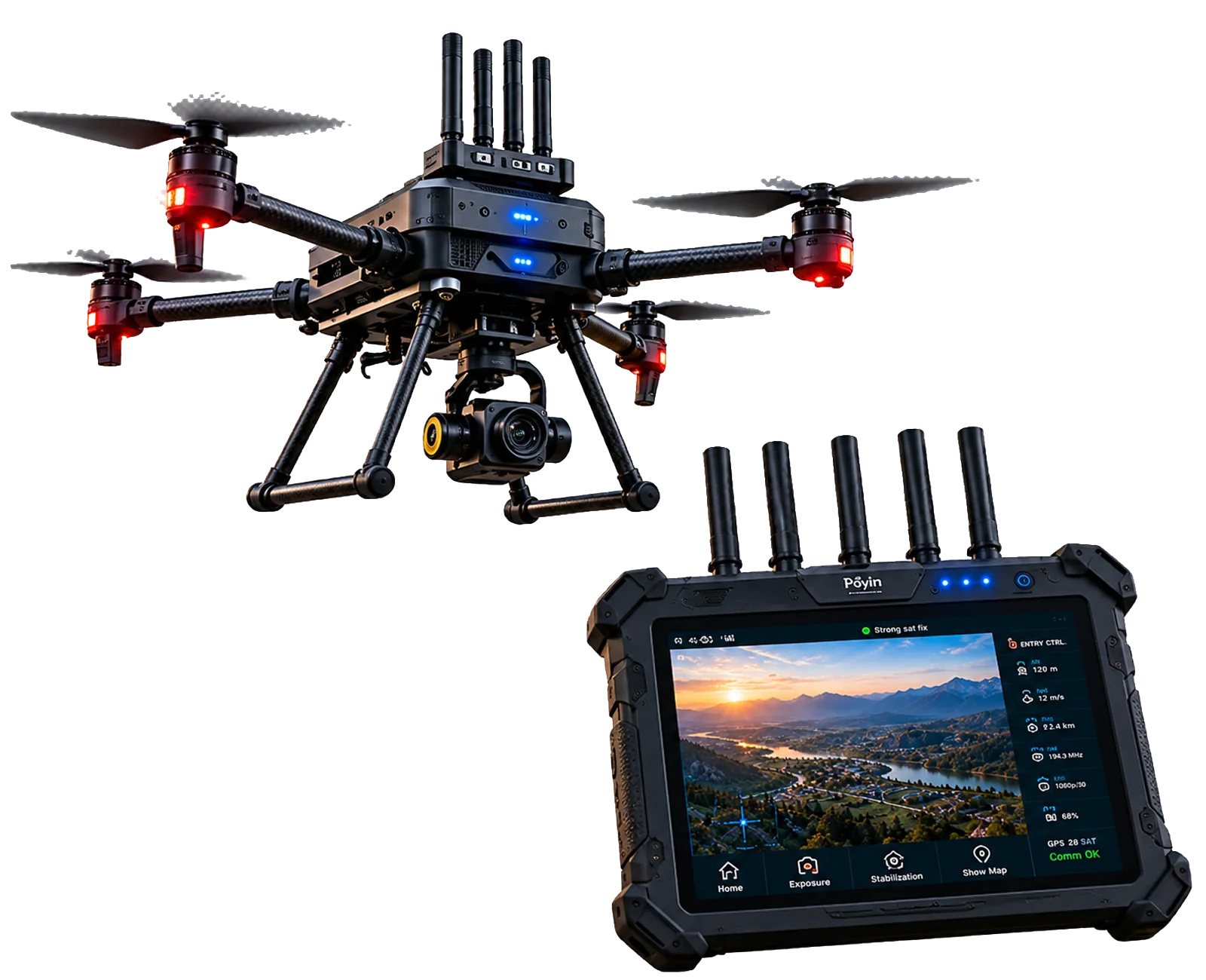

Drone and ground-control tablet linked by Halo

Halo aggregates multiple LTE, 5G, SatCom, and direct RF links into a single secure, bonded pipeline — delivering continuous, robust connectivity for unmanned systems in the air and on the ground. On every mission, prioritise the quality-of-service (QoS) of your video, telemetry, and command-and-control data while controlling the cost of each link. When one link degrades, the bond holds. No dropouts. No mission loss.

Key Differentiators

  • Multi-link bonding — aggregates 3G/LTE/5G cellular, SatCom, and any direct RF link into one secure pipeline
  • Field-proven — 200,000+ BVLOS flight hours in operational missions
  • Enables certification for BVLOS flights
  • Direct MAVLink support — integrates with unmanned flight controllers
  • AI-based bonding with real-time network prediction and 3D reception-coverage mapping for route planning
  • Fully configurable — link prioritisation, redundancy, and buffer size
  • Cloud management platform (cloud or on-prem) — multi-tier, multi-tenant; secure OTA updates
  • Optimised SWaP — low size, weight, and power; card variants under 100 g
  • 200,000+BVLOS Flight Hours
  • Encryption:AES-256-CBC
  • Power:6.5 W Average

Technical Specs

RID Network & Broadcast
FAA-accepted Remote ID (network + broadcast)
Cellular
Embedded 5G / 4G LTE / 3G bands (region-dependent)
Ethernet
2 × 1 GB ports
USB
1 × USB 2.0 · 1 × Micro-USB (internal debug)
WiFi & Bluetooth
Dual-band WiFi 2.4 / 5 GHz — 802.11 a/b/g/n/ac · BT 2.1 + EDR · BT 3.0 · BT 4.2 (BLE)
Serial
2 × RS232/422/485 · 1 × CAN bus · 1 × UART
Data Security
Packet-splitting mechanism · AES-256-CBC encryption
Advanced Communication
AI-based bonding technology · VPN (OpenVPN L2/3)
Environmental
Operating −40 °C to +85 °C
Power Input
DC 9 V – 30 V
Power Consumption
6.5 W (avg) · 10 W (max)

Use Cases

Military & Homeland Security
Redundant, encrypted links sustain command, control, and video where single links are jammed or congested.
Border & Perimeter Surveillance
Persistent connectivity for long-range autonomous patrol beyond direct-RF line-of-sight.
First Responder & Public Safety
Reliable real-time video and telemetry blended across public cellular and private RF networks.
Ground & Autonomous Robotics (UGV)
Bonded IP pipeline keeps unmanned ground vehicles linked with prioritised QoS across mixed networks.
Drone Delivery & Logistics
Cost-controlled, redundant links for scaled BVLOS delivery operations.
